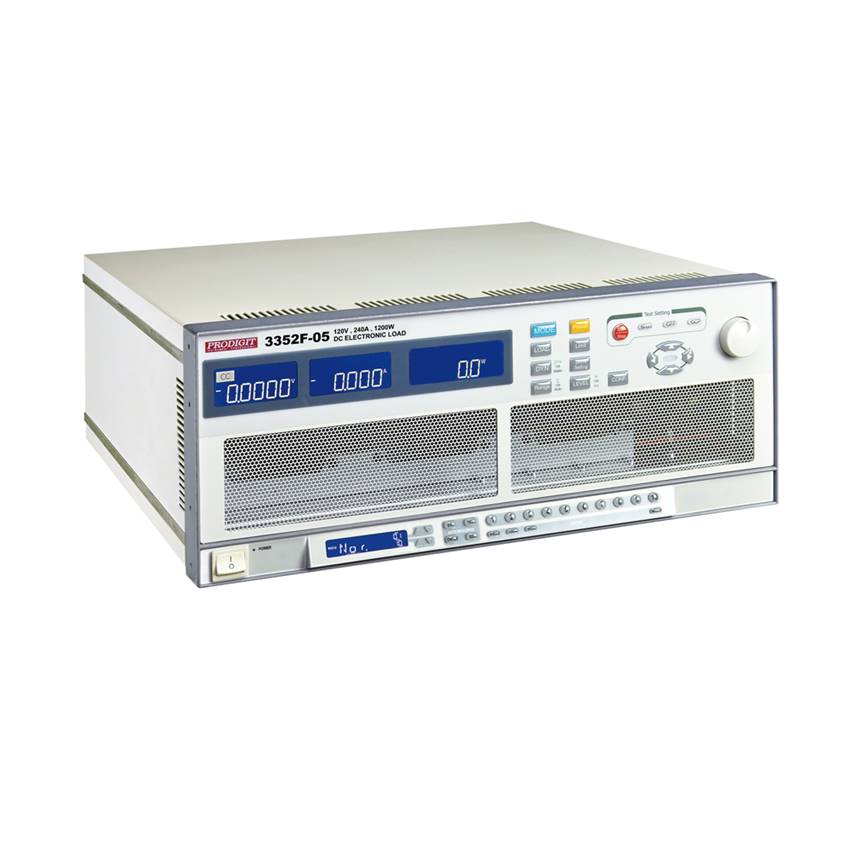

3352F-05 High Power DC Electronic Load 120V , 240A , 1200W

Description

l 3350F has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232¡BUSB and LAN interface.

l SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

l Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

l Single key for OCP ¡BOPP test function will be more efficiency and accuracy on OCP¡BOPP testing.

l Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡¨ + ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.

l Short, OCCP and OCDP function test for BMS protection board is provided (option).

Features

l 5 digit V / A / W Meter.

l High -speed measurement and communication transmission.

l Large LCD Display¡Bsetting values can be adjusted by rotary knob or push button.

l Voltage¡BCurrent and Watt value can be displayed simultaneously.

l OCP¡BOPP test function.

l Power ON status can be set.

l CC, CR, CV, CP, Dynamic and Short operation mode.

l SHORT time setting.

l Protections against V,I,W, and ¢J.

l Voltage meter display the polarity positive¡]¡¨¡Ï¡¨¡^or negative¡]¡¨¡Ð¡¨¡^is selectable.

l Optional Interface¡GGPIB¡BRS232¡BUSB¡BLAN.

l Function test for BMS protection board is provided (option)

l New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads.

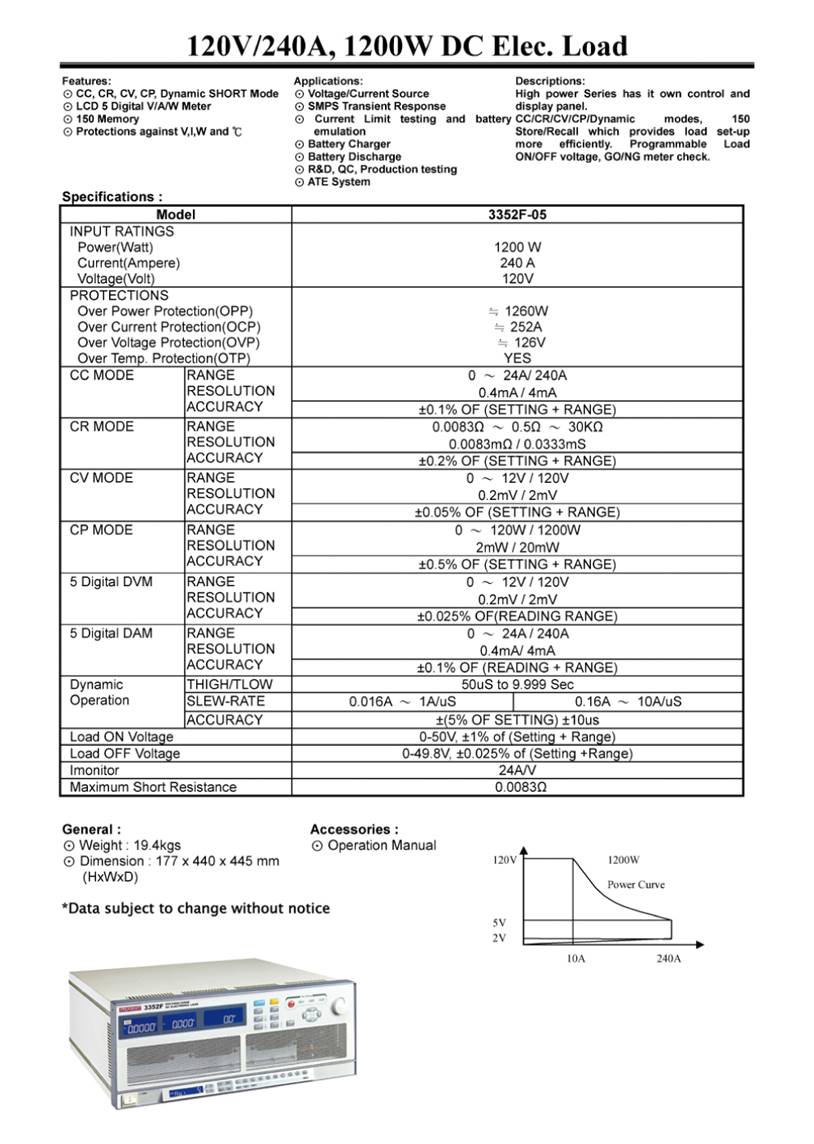

Specifications
